Alarm Best Practice

Resource Alarm

To ensure system stability and controllable resource usage, basic alarm thresholds have been set for key resources such as CPU, memory, and disk. When resource usage exceeds the preset warning value, the system will automatically trigger an alarm notification, allowing O&M personnel to respond and handle it in time to avoid resource bottlenecks affecting business operations.

Resource Type	Alarm Metric	Alarm Rule	Alarm Level	Note
Host	CPU Usage	≥ 80%, sustained for 5 min	Critical
Host	Memory Usage Percentage	≥ 80%, sustained for 5 min	Critical
Host	Root Disk Usage Percentage	≥ 80%, sustained for 5 min	Critical
Host	Number of Unhealthy Containers	≥ 1, sustained for 5 min	Critical
RabbitMQ	Queue Message Count	≥ 10, sustained for 5 min	Critical

Configuration Example: CPU Resource Alarm

• Log in to the O&M management platform: IP:30443

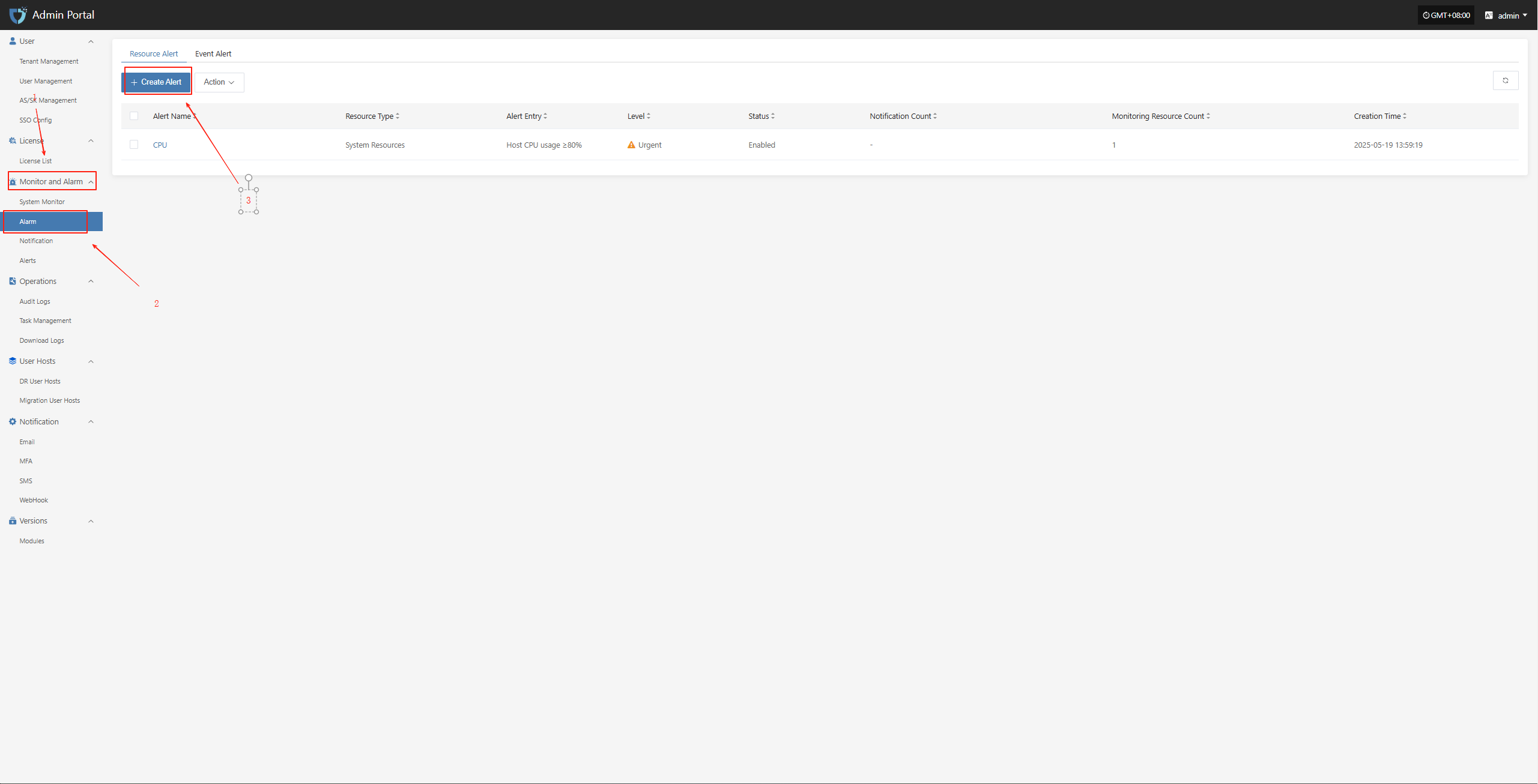

  • Monitor and Alarm -- Alarm -- Create Alert

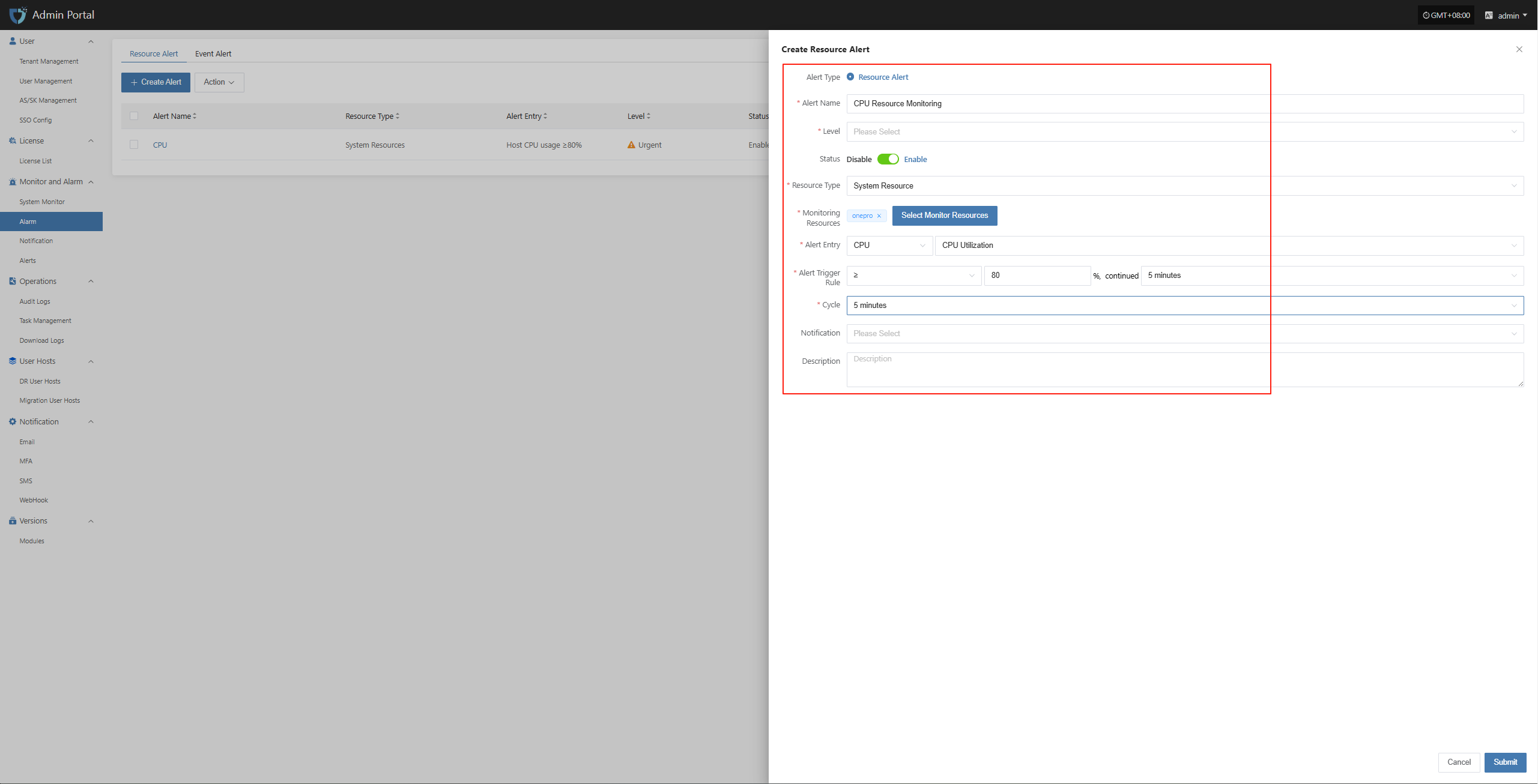

  • Fill in the corresponding level name as needed, and clarify the monitoring scope according to the table above

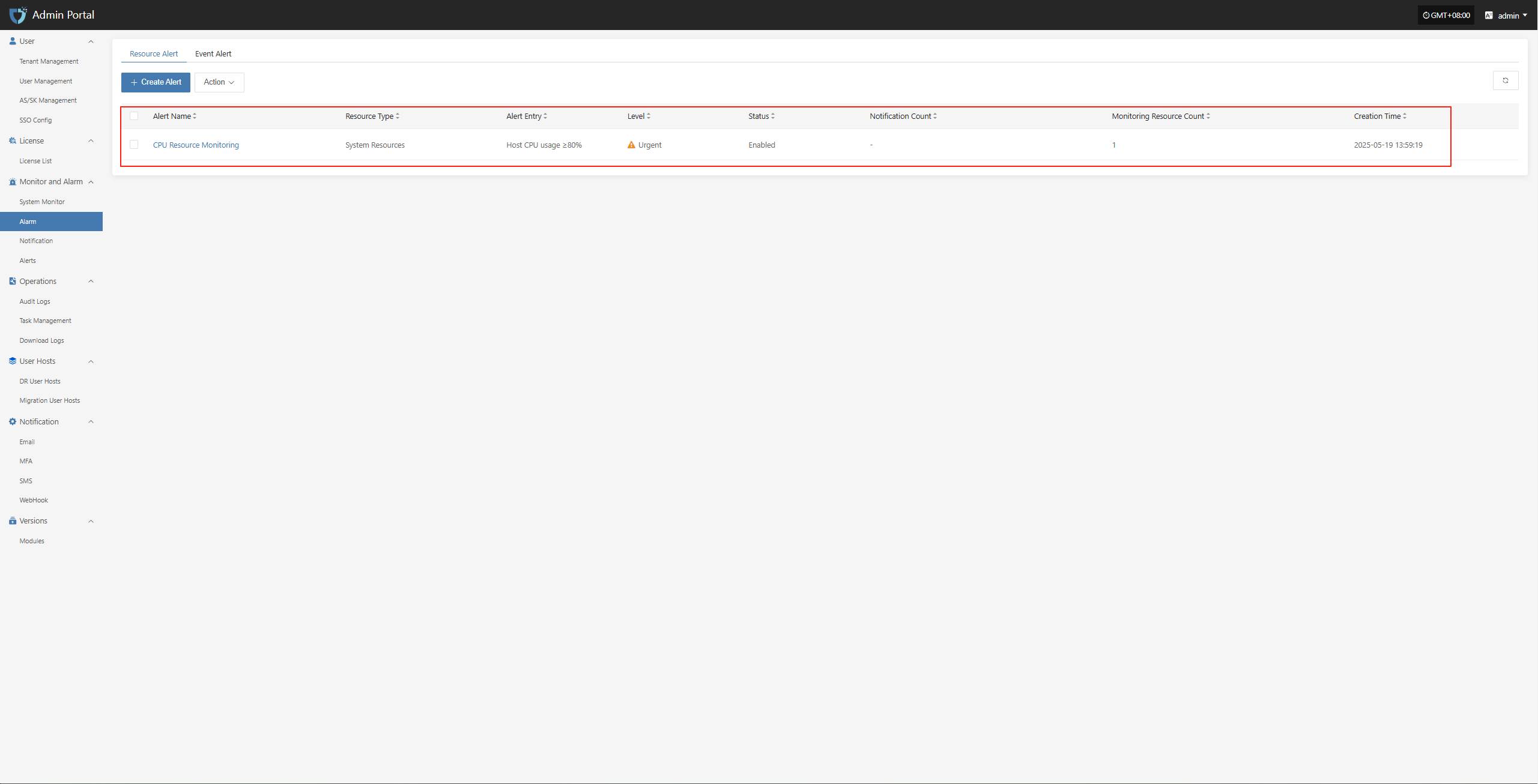

  • Complete the creation



Event Alarm

To ensure the security and observability of system operations, event monitoring strategies have been set for key operational behaviors and abnormal states of DR hosts. When events such as host disconnection, sync failure, or startup exception are detected, the system will automatically record and trigger alarm notifications to help O&M personnel quickly locate and handle issues, reducing the impact of potential risks on business.

Monitored Resource	Event Type	Event Result	Alarm Level	Note
Event	Host Disconnected	Success	Critical
Event	Sync Host	Failure	Critical
Event	Boot Host	Failure	Critical

Configuration Example: Sync Data Failure Alarm

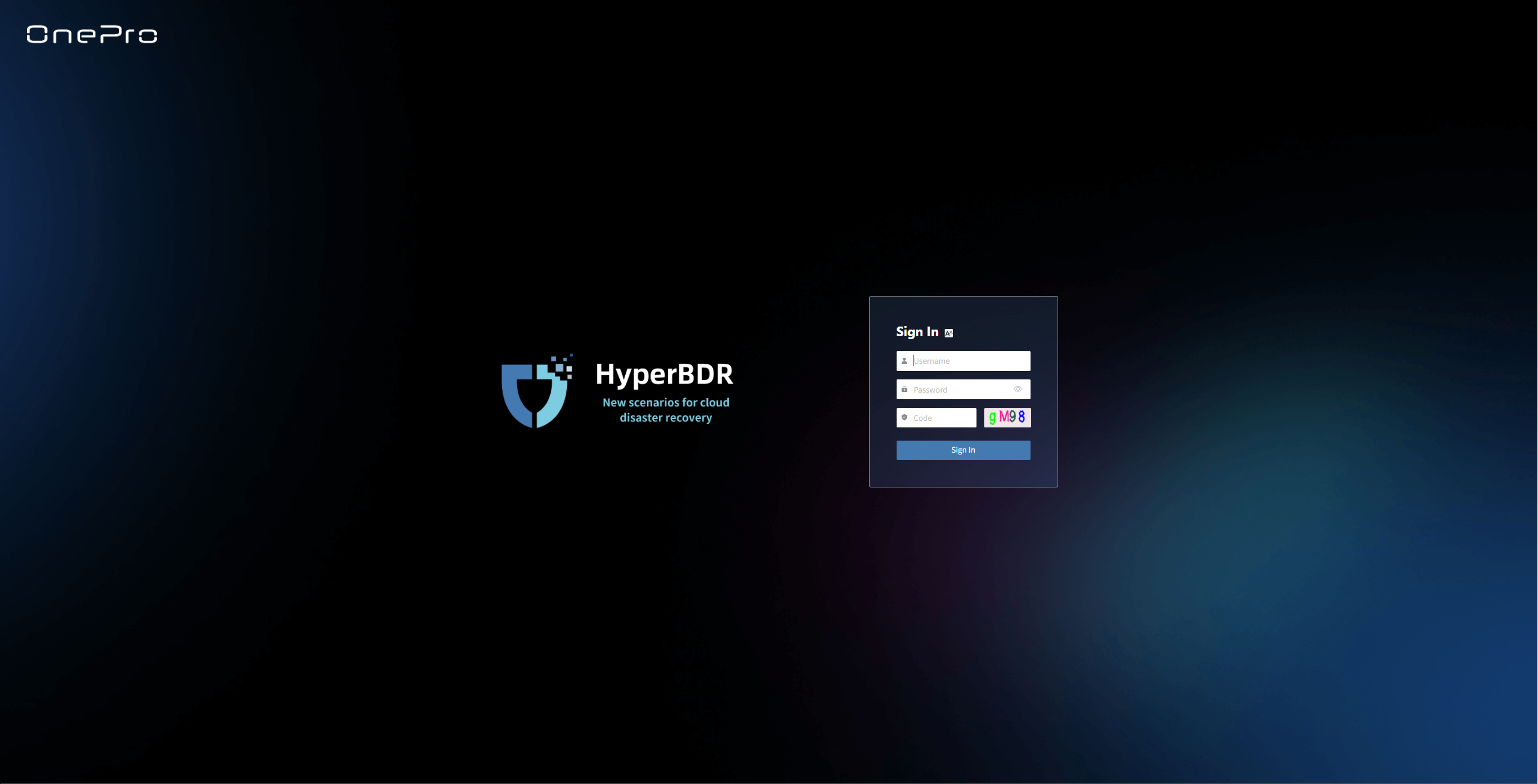

• Log in to the console: IP:10443

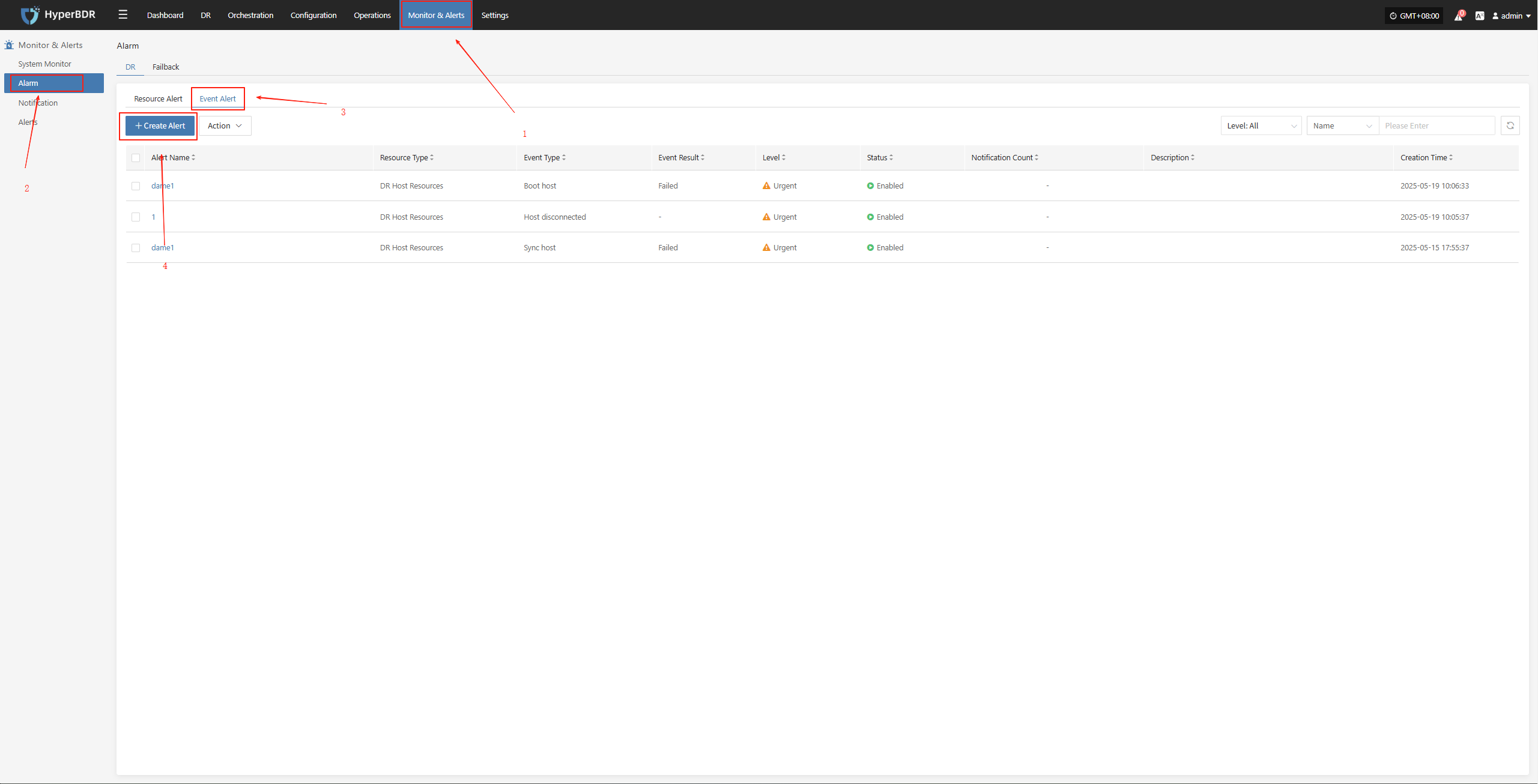

  • Monitor & Alerts -- Alarm -- Event Alerts -- Create Alerts

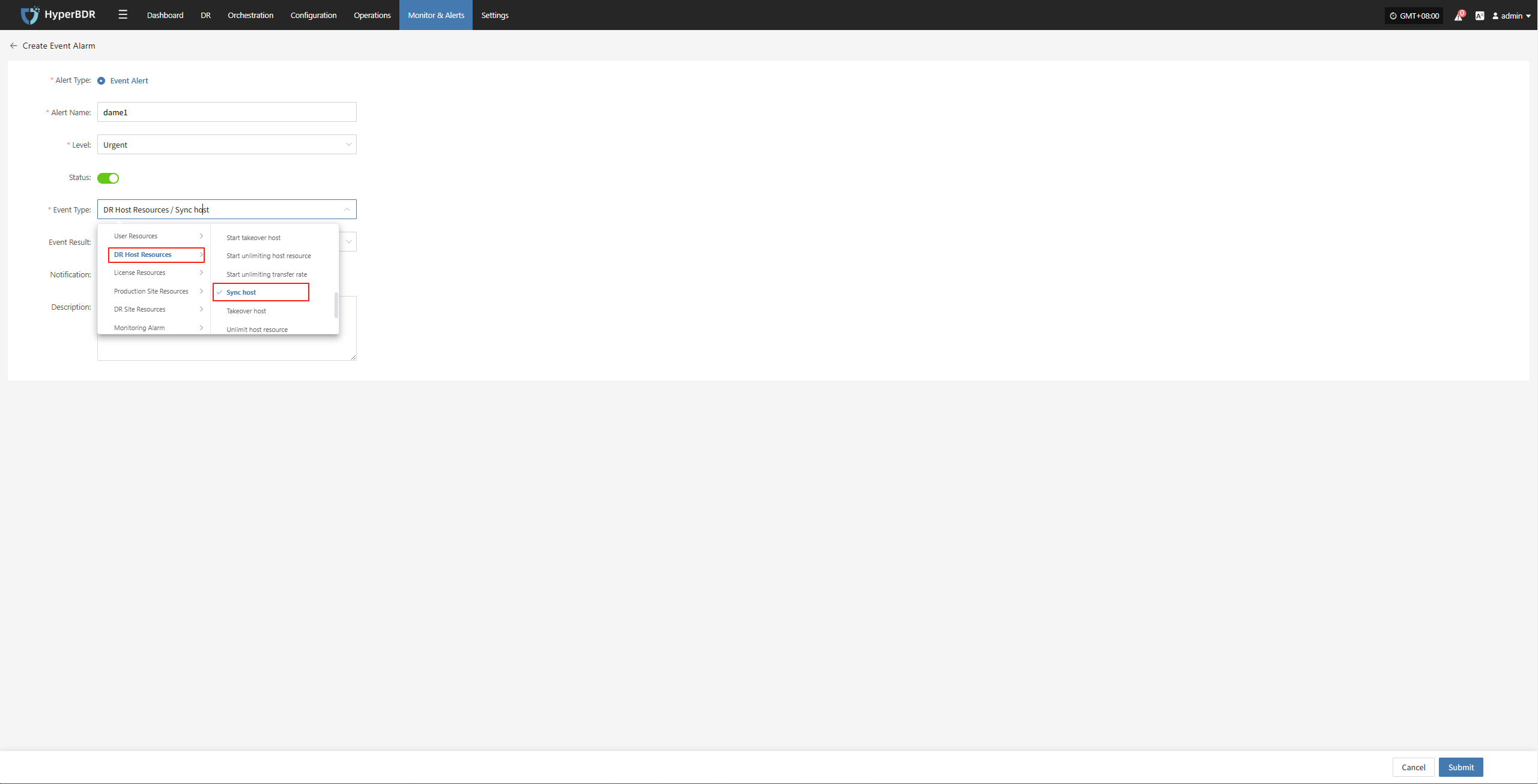

  • Select and fill in the corresponding monitored event type as needed



  • Specify the event result type

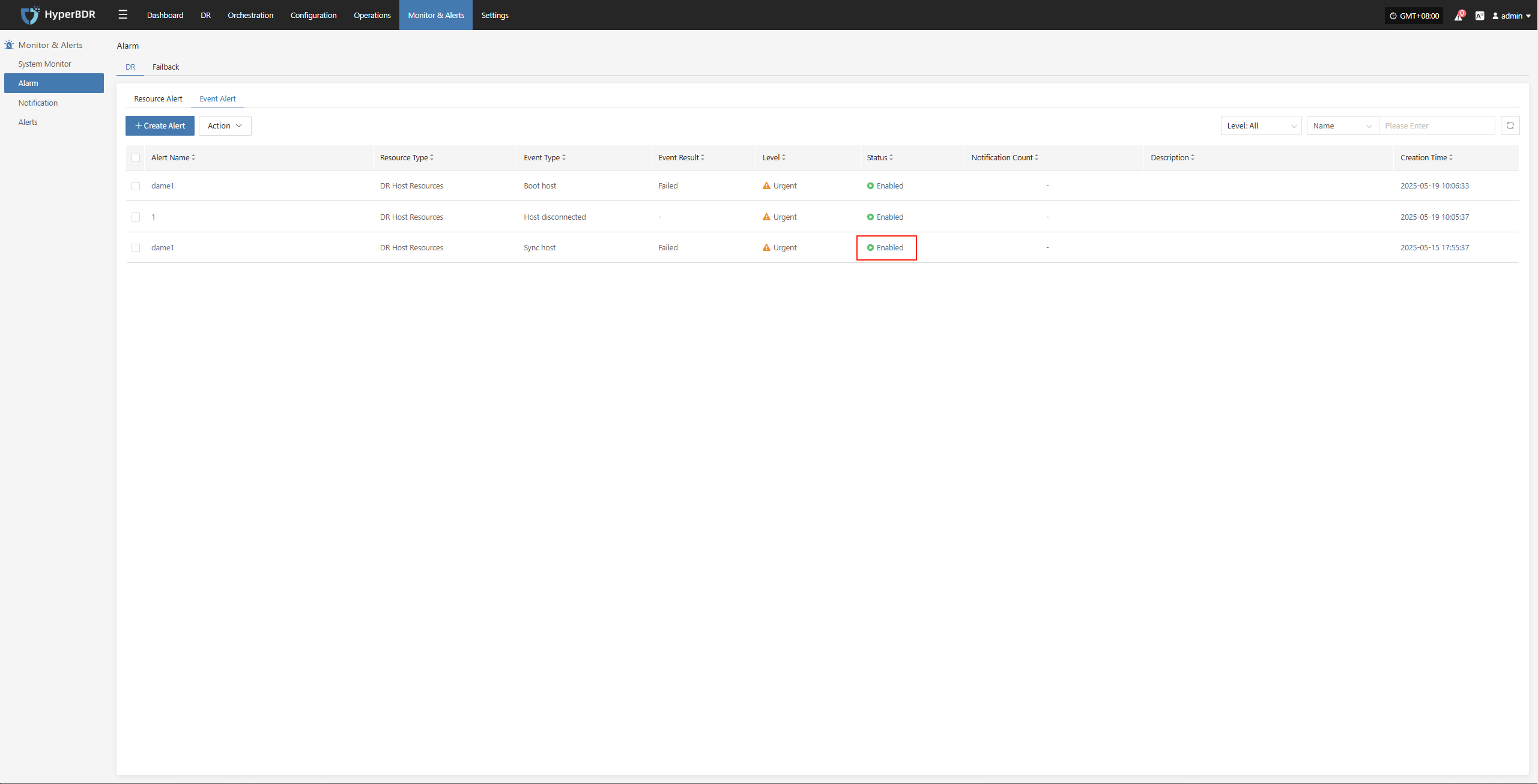

  • Complete the creation
