Event Logs

In HyperBDR, users can go to "Operations Management > Event Logs" to view detailed records of all DR and Failback operations on the platform. This page helps O&M staff track actions, audit behavior, and troubleshoot issues.

Page Features

Users can quickly search using the top filter options, supporting log filtering by the following fields:

• Resource Type: Select the type of resource related to the operation (e.g., VM, user resource, etc.)
• Message Name: Filter specific operation events by keyword
• Resource Name: Enter a keyword to find the corresponding resource

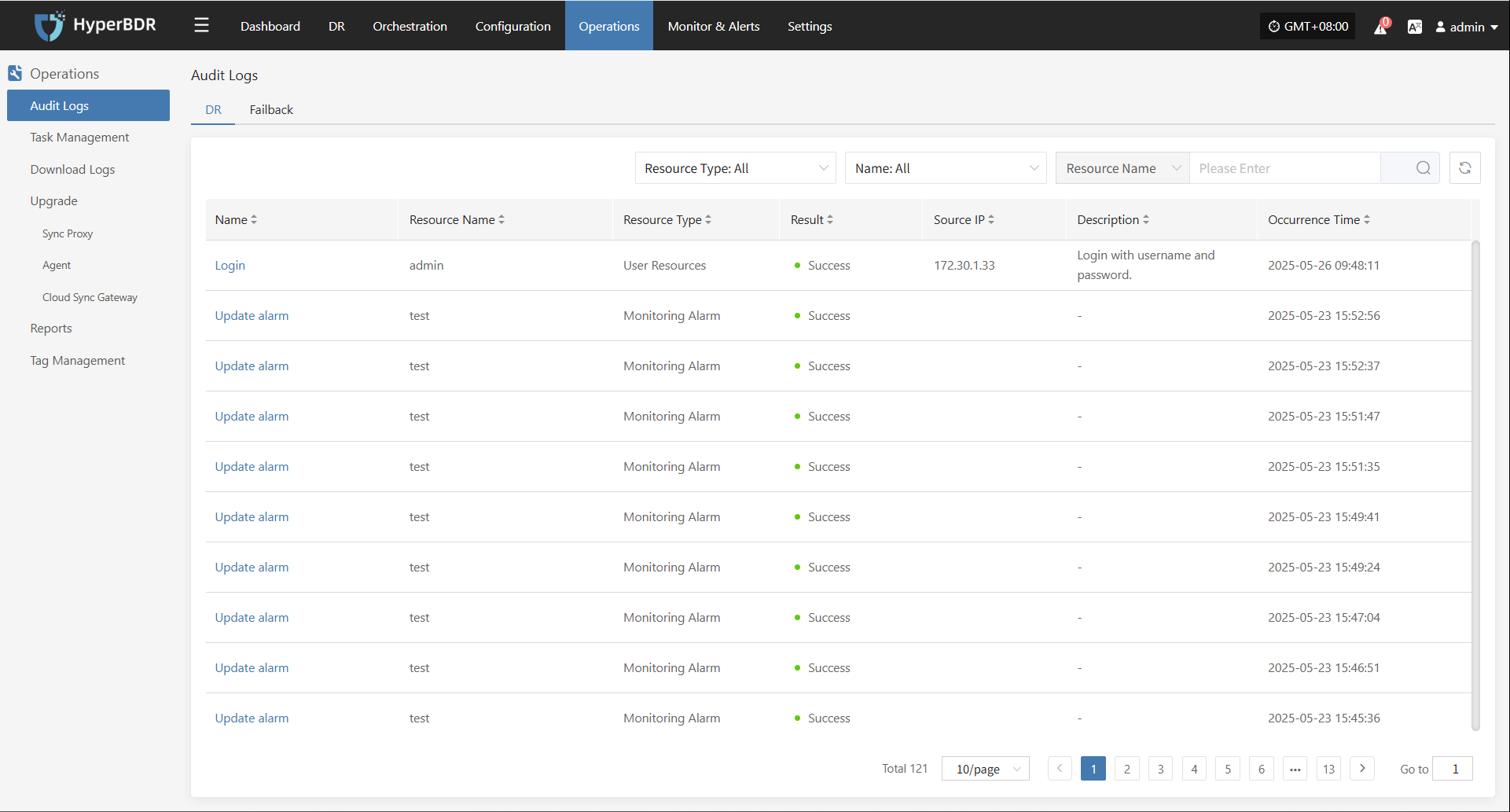

operations-event-logs-dr

Audit Log Description

Field Name	Example	Description
Name	Login	The type of audit event, e.g., user performed a login action.
Resource Name	admin	The user or resource that triggered the audit event.
Resource Type	User Resource	The category of resource involved, here related to user ops.
Result	Success	The result of the operation, usually "Success" or "Failure".
Source IP	172.30.1.33	The client IP address that initiated the operation.
Description	Login with username and password	Brief description of the operation, helps understand intent.
Occurrence Time	2025-05-23 09:54:10	The exact time the event was recorded, for tracking/audit.

Click the message name to view details.

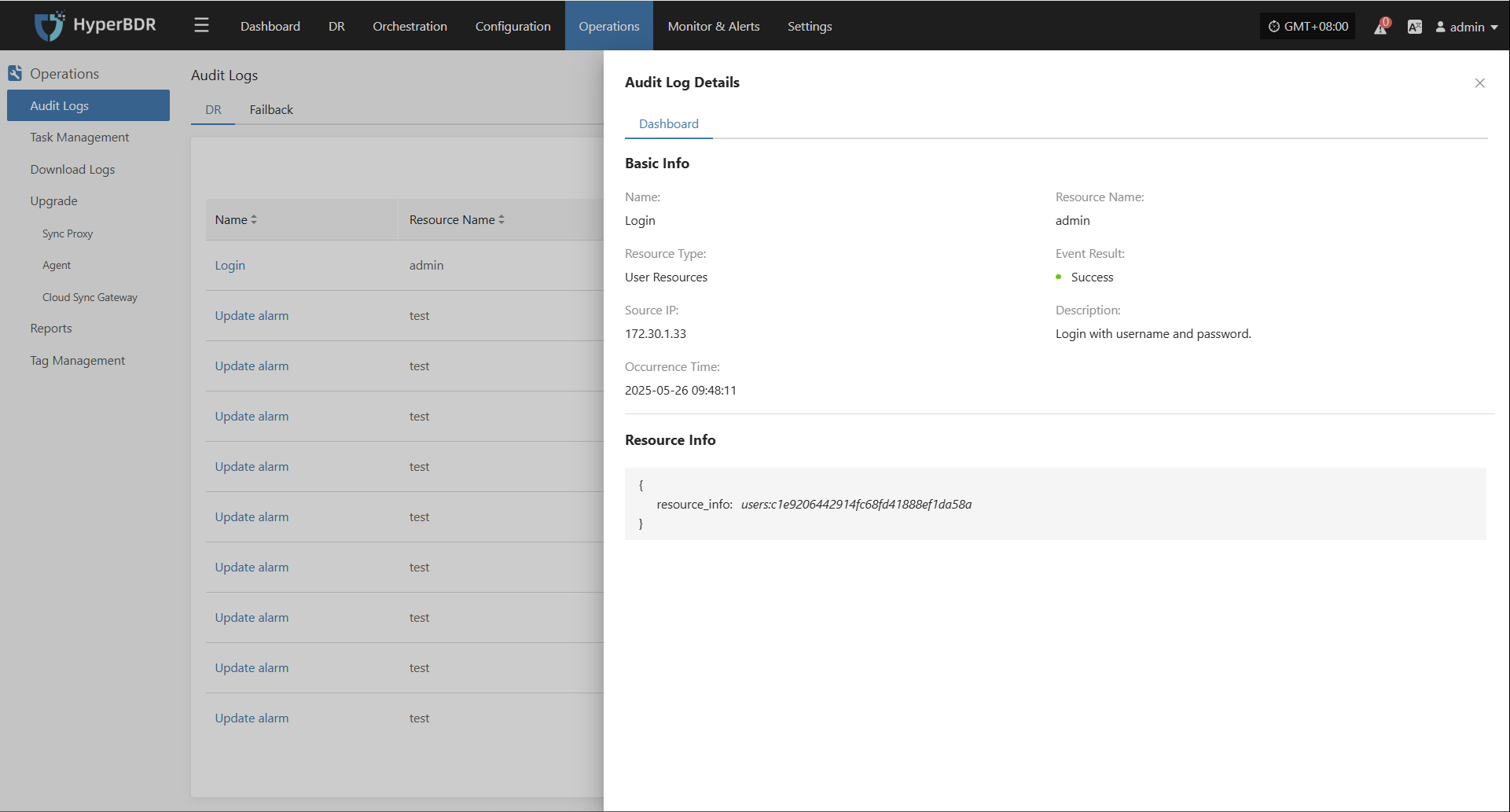

operations-audit-logs-dr-name-detail

Resource Type Description

Resource Type	Description
User Resource	Resources related to user accounts and actions, e.g., login records, permission changes.
DR Host Resource	Hosts involved in DR protection, including configuration and status.
License Resource	Management and status of licenses required for system operation.
Production Site Resource	Agents, hosts, and services in the production environment.
DR Site Resource	Platforms and components in the DR backup environment.
Monitoring Alarm	Objects and events related to resource monitoring and alerts.
Resource Group	Logical groupings of resources by business or function.
Object Storage	Object storage resources for backup, archiving, etc.
Resource Policies	Policy objects defining DR behavior, such as sync and failover rules.

Other Notes

• The page supports pagination, showing 10 records per page by default.
• You can use the search box in the upper right corner for more precise queries.
• Audit logs cannot be edited manually and are only used for system behavior tracking.
